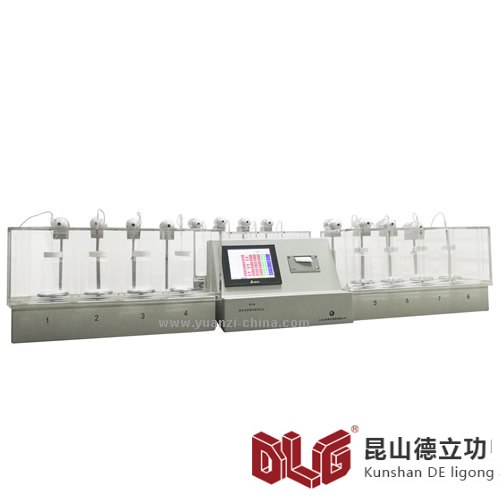

输注泵流量测试仪SY-B

是根据YY 0451-2003 一次性使用输注泵和YY 0451-2010 一次性使用便携式输注泵中的有关条款而设计制造的。（一拖8个输注泵检测或根据客户需要增加或减少）用于分别测量输注泵平均流量、瞬时流量，并显示输注泵流量与时间的曲线图。

采用PLC可编程控制器、液晶触控屏、全中文菜单，由触控屏选择测试参数，自动测试，自动判断结果。

It is designed and manufactured according to the relevant provisions of YY 0451-2003 disposable infusion pump and YY 0451-2010 disposable portable infusion pump. (Dragging 8 infusion pumps to detect or increase or decrease according to customer's needs) Used to measure the average flow and instantaneous flow of infusion pump respectively, and display the flow and time curve of infusion pump.

Using PLC programmable controller, LCD touch screen and full Chinese menu, the test parameters are selected by touch screen, and the test results are automatically judged.

测试范围：0~600g  分辨率0.01g，误差不大于读数±1%。

打印：可打印100个点的数据

曲线图：8组曲线图可切换查看

时间设定：1~10000min  自动计算出平均流量、瞬间流量。

净重：15kg

外形尺寸：500×360×240（mm）

部分清单：

1.主机一台

2.打印纸1卷

3.质保一年

4.操作说明

5.仪器终身免费依国家标准规定升级服务

Test range: 0-600 g resolution is 0.01 g, error is not more than 1% reading.

Printing: Data that can print 100 points

Curves: 8 groups of graphs can be switched to view

Time setting: 1 ~ 10000 minutes automatically calculate the average flow and instantaneous flow.

Net weight: 15kg

Shape size: 500 x 360 x 240 (mm)

Part of the list:

1. One mainframe

2. Print Paper 1 Volume

3. One-year warranty

4. Operational instructions

5. Instrument upgrade service free of charge for life in accordance with national standards
