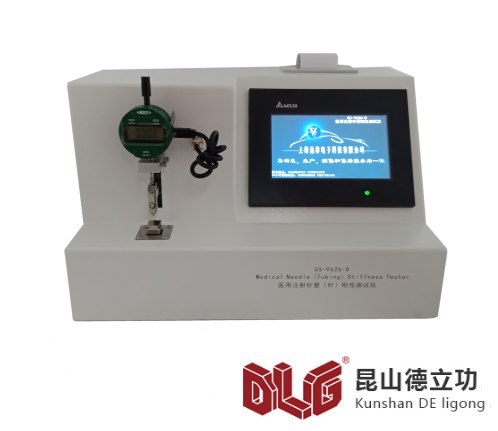

注射针管刚性测试仪GX-9626-D

采用5.7英寸（120×90）PLC多彩液晶触控显示屏，中文菜单显示。公称规格、管壁、跨度、设定载荷、最大挠度、打印设定、测试、上行、下行、时间、标定。由键盘控制液晶显示屏上的菜单，机载打印测试数据。 GX-9626-D医用注射针管（针）刚性测试仪完全符合GB18457《制造医疗器械用不锈钢针管》、GB15811《一次性使用无菌注射针》标准中相关条款设计制造；管壁：正常壁、薄壁、超薄壁三种任选；

It adopts 5.7 inch (120 *90) PLC multi-color LCD touch screen and Chinese menu display. Nominal specification, pipe wall, span, set load, maximum deflection, print setting, test, up, down, time and calibration. The menu on LCD screen is controlled by keyboard, and the test data is printed on board. The Medical Needle (Tube) Stiffness Tester of GX-9626-D fully conforms to the relevant provisions of GB18457 "Stainless steel needle tube for manufacturing medical instruments" and GB15811 "disposable sterile injection needle" standards.

公称规格：0.2～3.4mm;

设定荷载： 1.2～60N，  精度：±1%；

加载速率：加载到设定值时其速度为1mm/min;  跨 度：5～50mm

精度：±0.1mm(11种规格)；

挠度测试：0～0.8mm，精度：±0.01mm；

打印方式：每次可打印8次、13次或20次

试数据及平均挠度值和偏差值。

净重：20kg  外形尺寸：400×290×240（mm）

Nominal specification: 0.2-3.4 mm;

Setting load: 1.2-60N, accuracy: +1%;

Loading rate: 1 mm/min when loading to set value; span: 5-50 mm

Accuracy: +0.1mm (11 specifications);

Deflection test: 0-0.8mm, accuracy: +0.01mm;

Printing mode: 8, 13 or 20 times each time.

Test data and average deflection and deviation values.

Net weight: 20kg shape size: 400 x 290 x 240 (mm)
